Perodua Kelisa Dasboard Fusebox

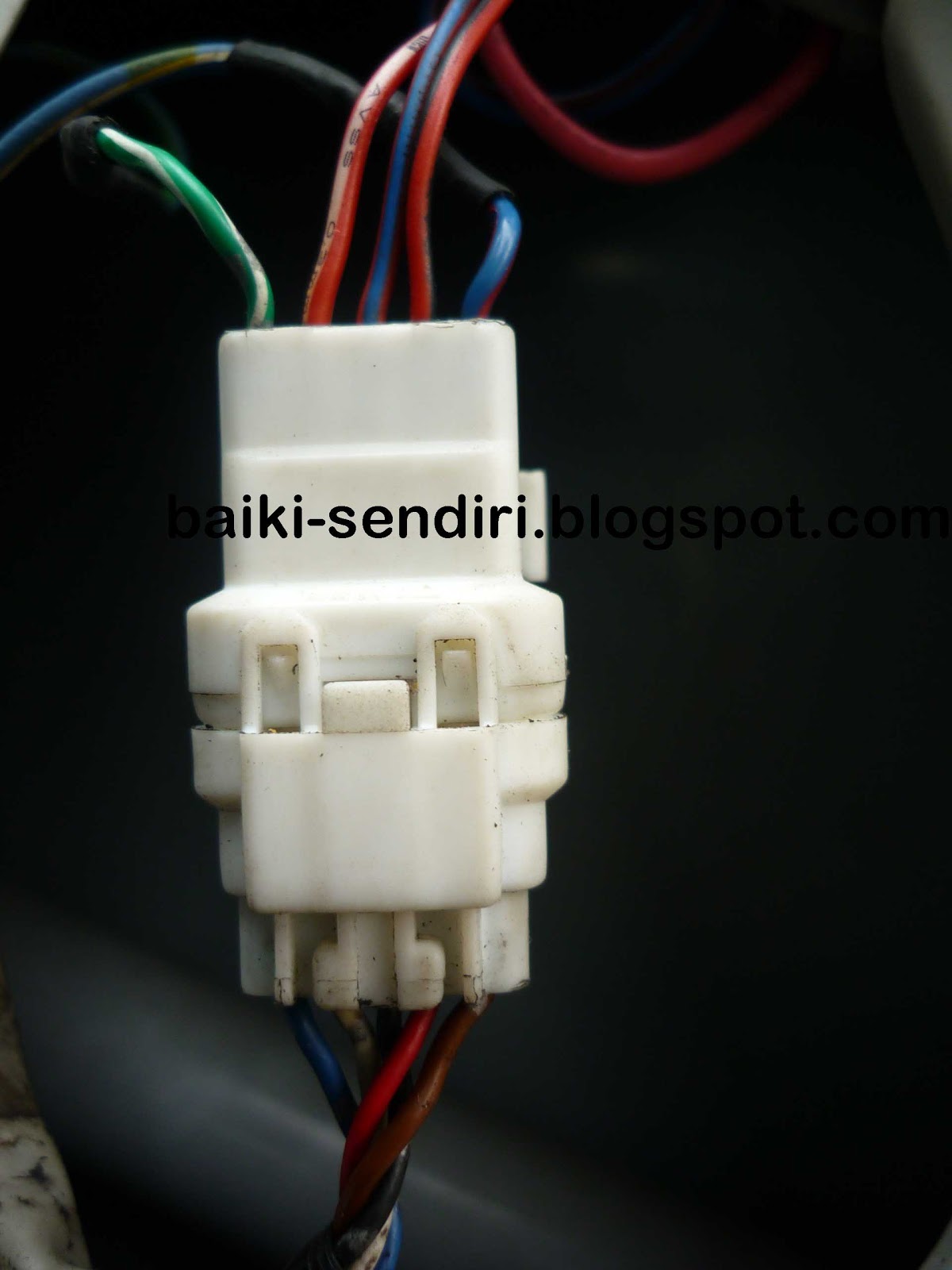

The side mirror connector. 5 wires for autoflip and power adjust.
Autoflip wires.
The button change the polarity to flip and unflip side mirror.
 |
| In Perodua Kelisa with fully manual side mirror, factory left the connector. Find suitable wire and plug in. |
Kelisa with autoflip button.
Door side mirror connector.
Original power distribution for side mirror.
R02 from key switch.
RC8 is ACC power for side mirror.
Verify it with key on and off.
We dont want any current leak due to wrong pin.
Wiring diagram for non auto flip side mirror.
Simply add 2 wires for autoflip from switch for both sides.
